Chapter 4: Deploy ECS Fargate

Chapter Objectives

In this chapter, you will learn how to deploy dockerized frontend and backend applications pushed to ECR using Amazon ECS Fargate – a serverless container service on AWS.

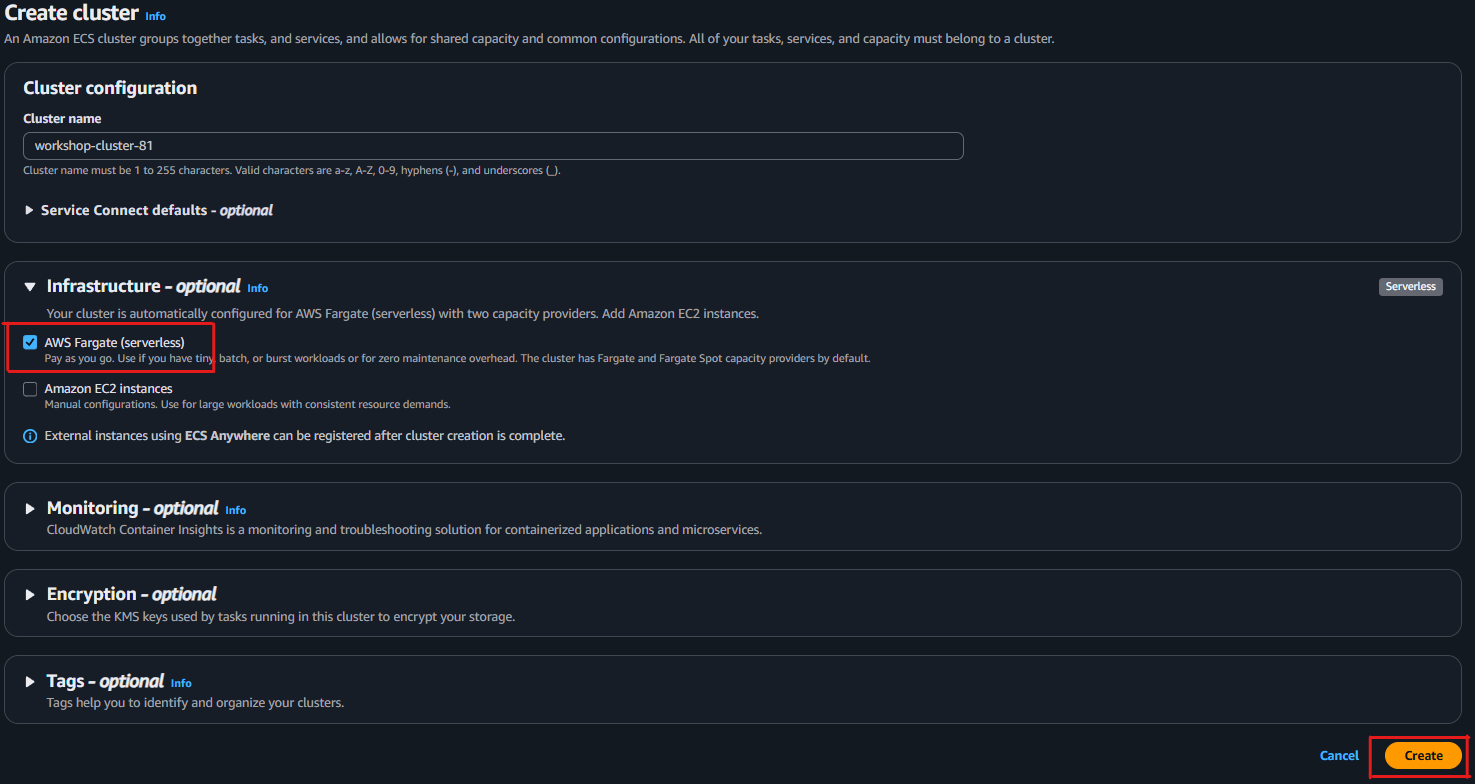

Step 1: Create ECS Cluster

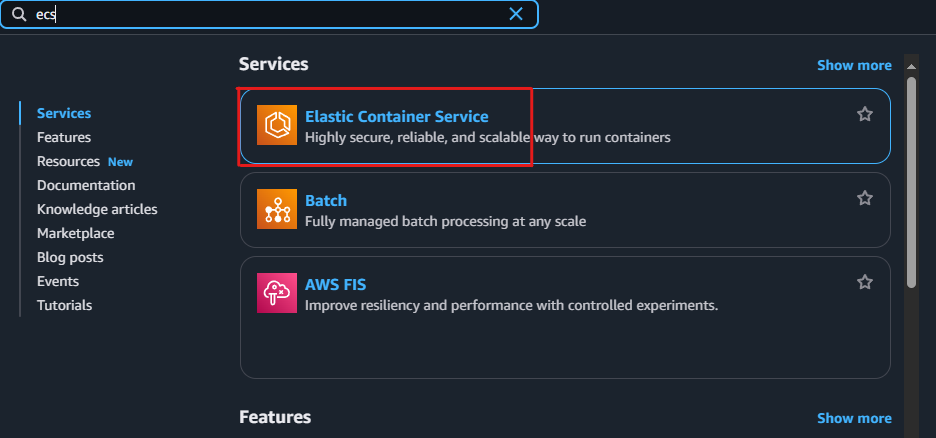

1. Access AWS Console → find ECS
2. Select Clusters → click Create Cluster
3. Choose cluster type: Networking only (Fargate)
4. Name: workshop-cluster-81
5. Click Create

✅ The cluster will have no EC2 instances because you’re using Fargate (serverless).

Step 2: Create Task Definition

You need to create 2 task definitions – one for frontend and one for backend.

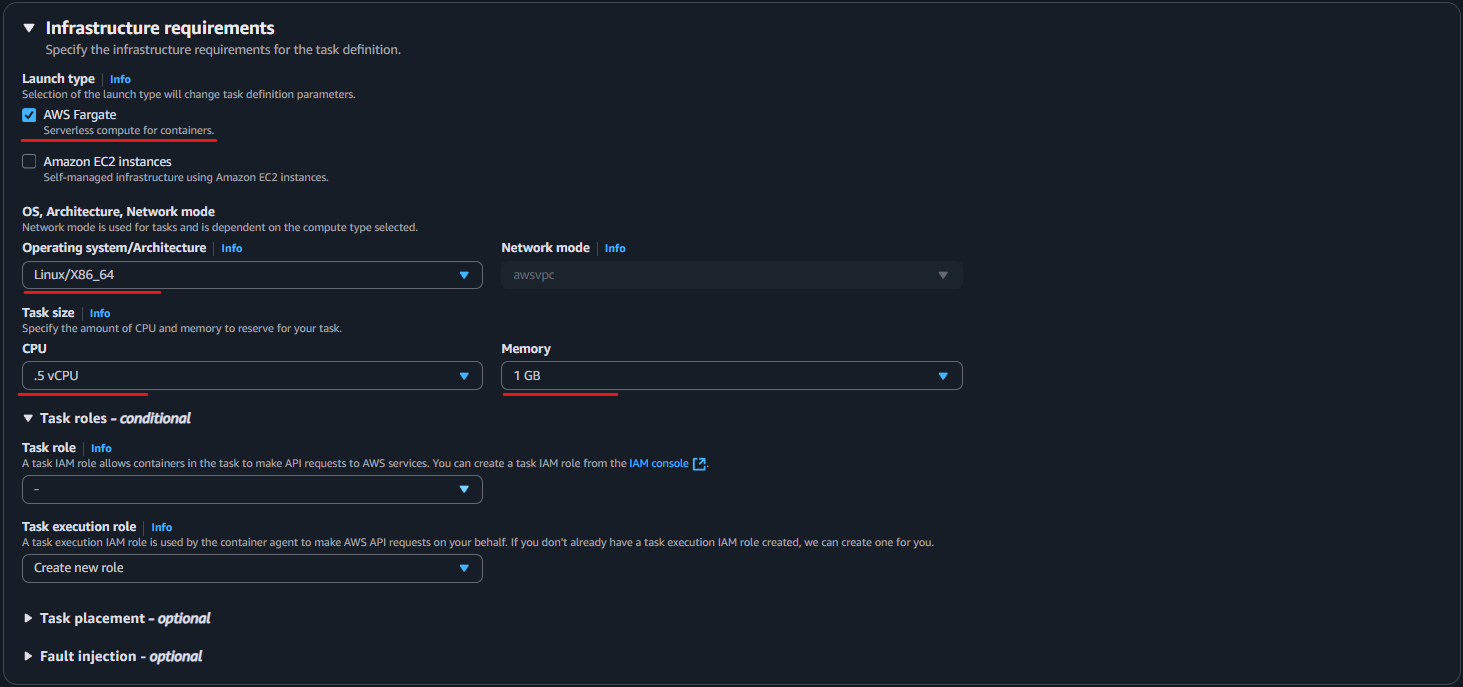

2.1. Frontend Task

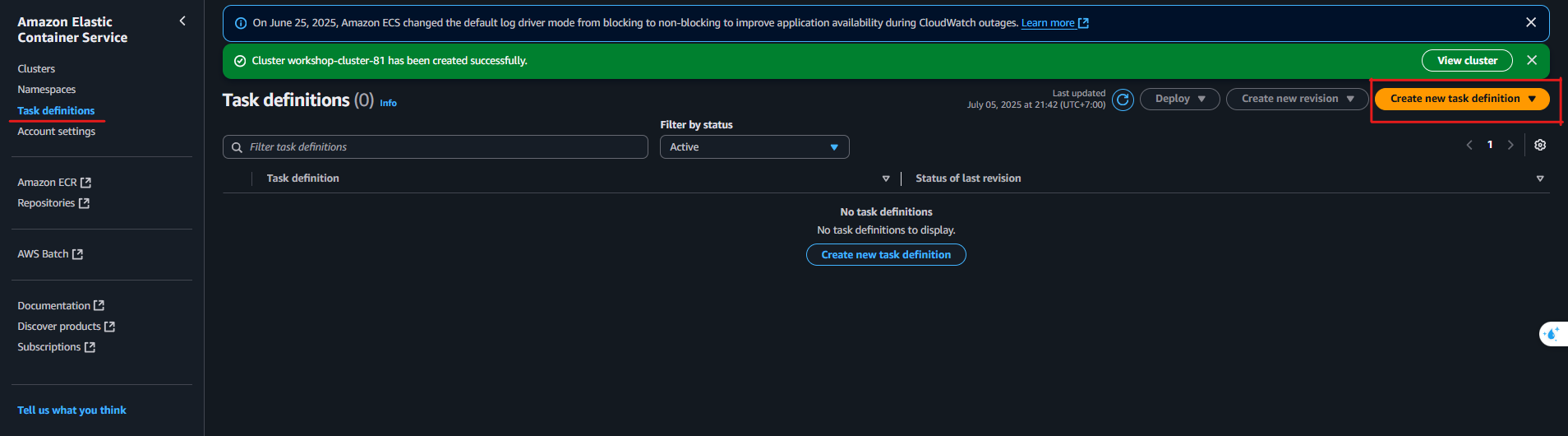

1. ECS → Task Definitions → Create new Task Definition

2. Launch type: Fargate
3. Task name: frontend-task
4. CPU: 0.5 vCPU, Memory: 1 GB

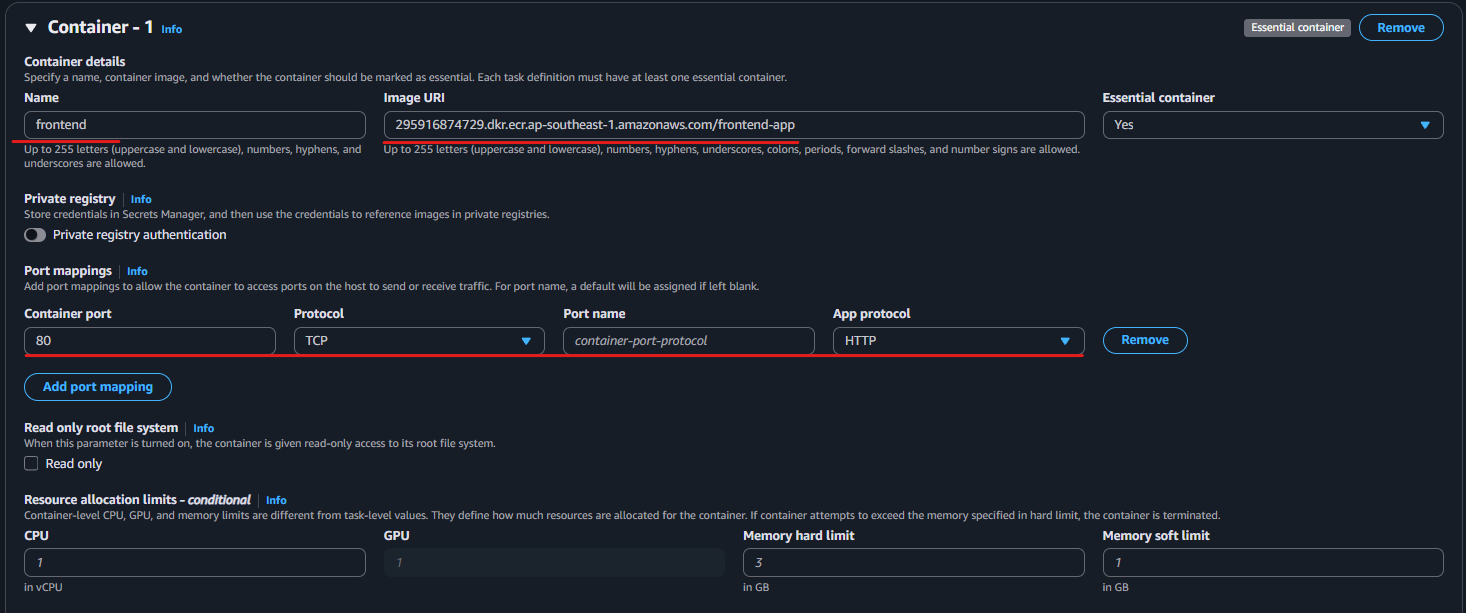

5. Click Add container:

   • Container name: frontend
   • Image URI:

     <AWS_ACCOUNT_ID>.dkr.ecr.<AWS_REGION>.amazonaws.com/frontend-app:latest


   • Port mappings: 80



6. Click Create

2.2. Backend Task

Repeat the above steps with:

• Task name: backend-task
• Container name: backend
• Image URI: <AWS_ACCOUNT_ID>.dkr.ecr.<AWS_REGION>.amazonaws.com/backend-app:latest
• Port mappings: 3000

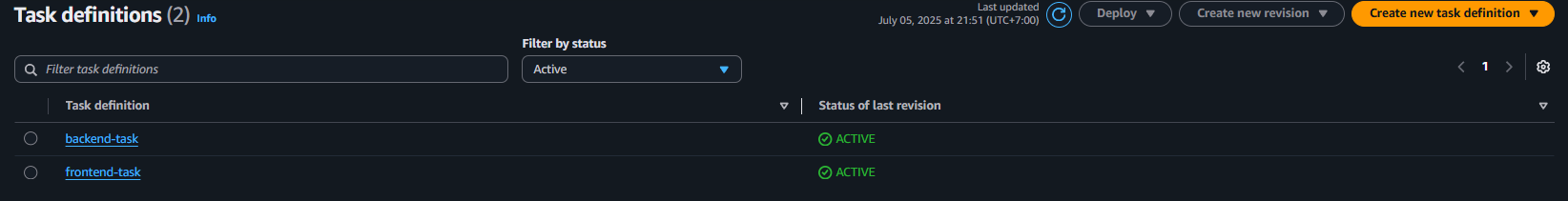

✅ Successfully created backend-task and frontend-task.

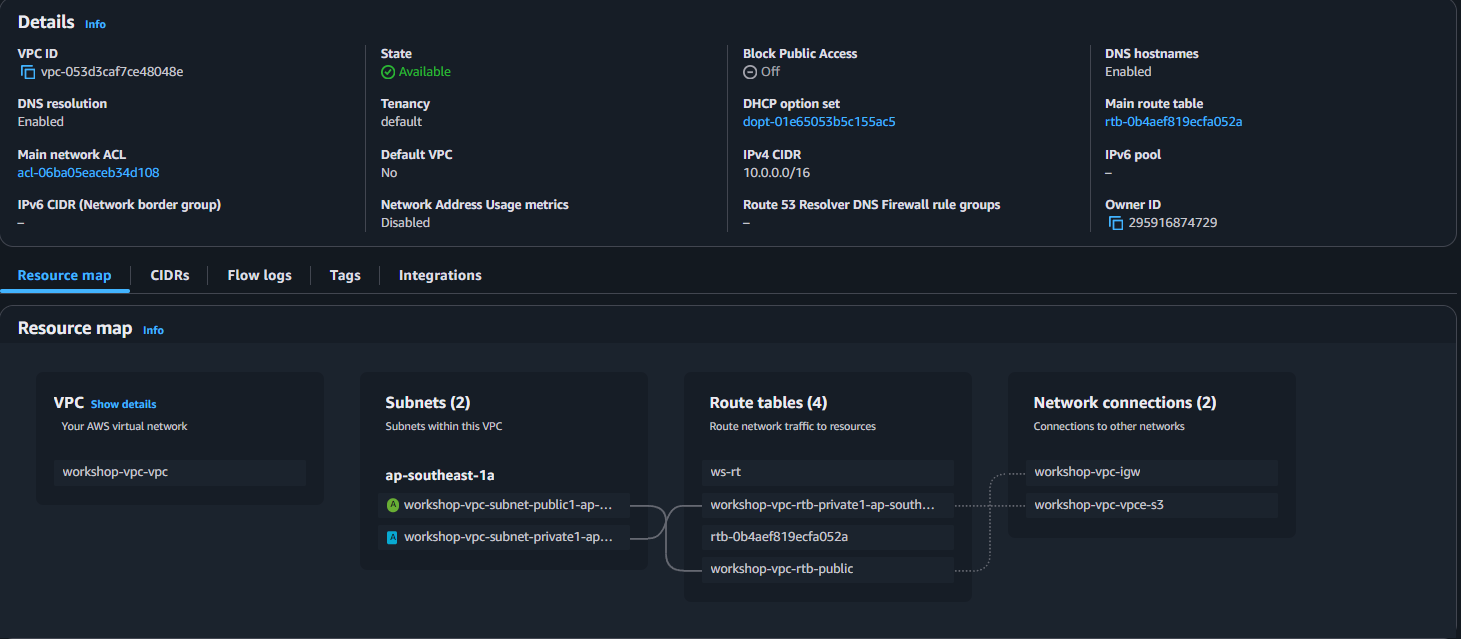

Step 3: Create VPC and Networking

If you don’t have a suitable VPC, create one following these steps:

1. Access VPC → Create VPC
2. Name: workshop-vpc, CIDR block: 10.0.0.0/16
3. Create 2 subnets:

• Subnet 1: 10.0.1.0/24 – Public
• Subnet 2: 10.0.2.0/24 – Private

4. Create Internet Gateway → attach to workshop-vpc
5. Update Route Table:

• Public Route Table: route 0.0.0.0/0 to Internet Gateway
• Assign this route table to Subnet 1

⚠️ Only frontend needs internet access (public subnet). Backend can be placed in private subnet.

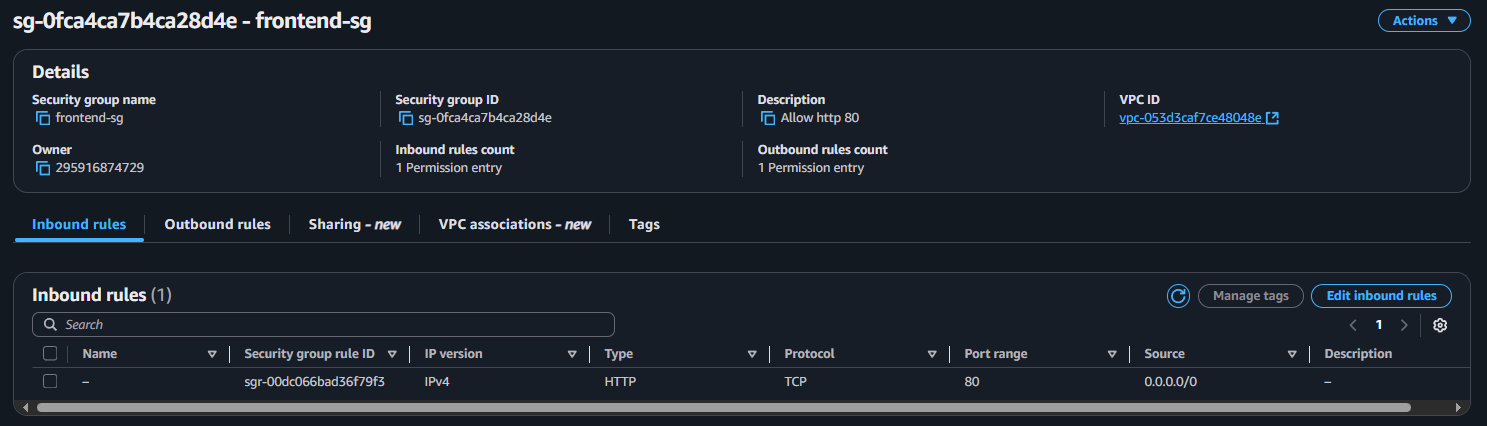

Step 4: Create Security Group

1. Go to EC2 → Security Groups → Create Security Group
2. Name: frontend-sg, description: Allow HTTP
3. Inbound rules:

• Type: HTTP
• Port: 80
• Source: 0.0.0.0/0

4. Outbound: keep default (Allow all)

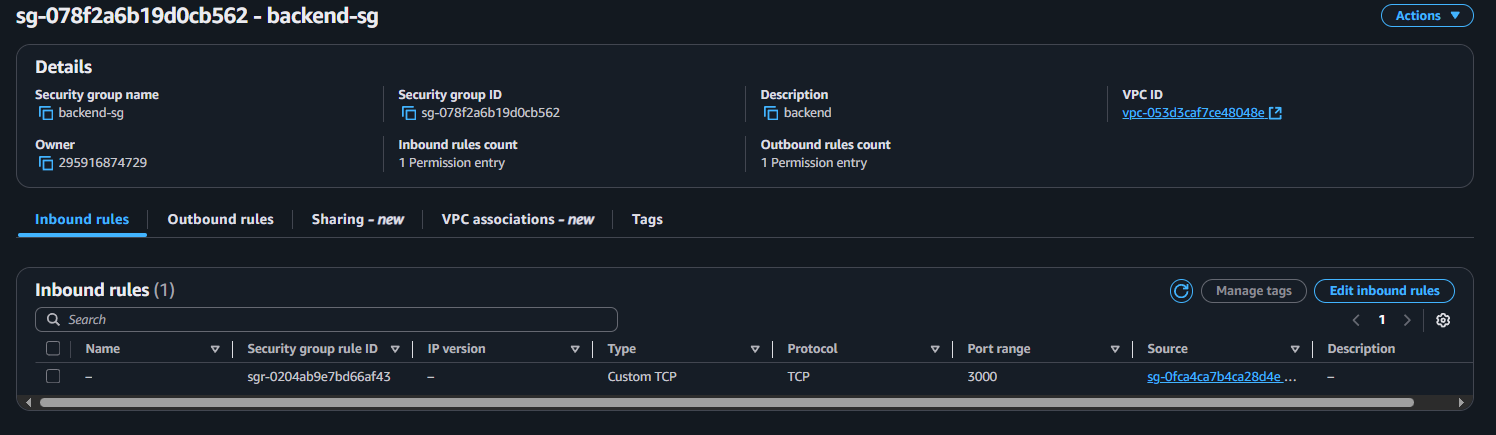

Create additional backend-sg:

• Inbound:
• Type: Custom TCP, Port 3000
• Source: frontend-sg (select from group list)
• Outbound: default

Step 5: Create ECS Service (run containers)

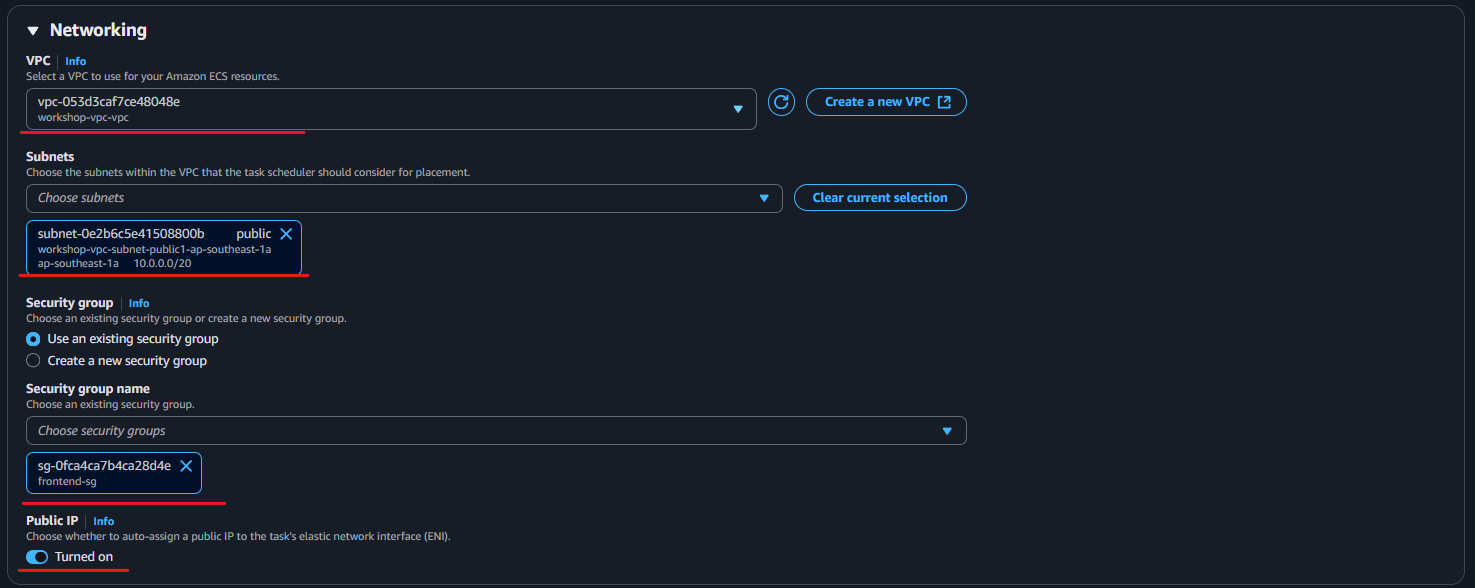

5.1. Create Frontend Service

1. Go to ECS → workshop-cluster
2. Select Services tab → Create
3. Fill information:
   • Launch type: Fargate
   • Task definition: frontend-task
   • Service name: frontend-service
   • Number of tasks: 1
   • Cluster VPC: select workshop-vpc
   • Subnet: select public subnet
   • Security Group: select frontend-sg
   • Check Enable public IP
4. Click Create Service

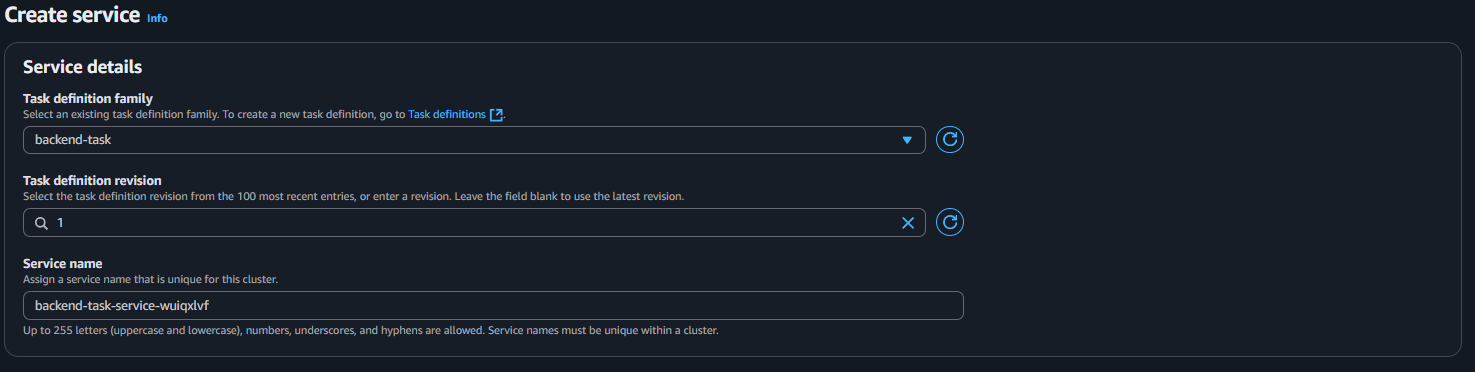

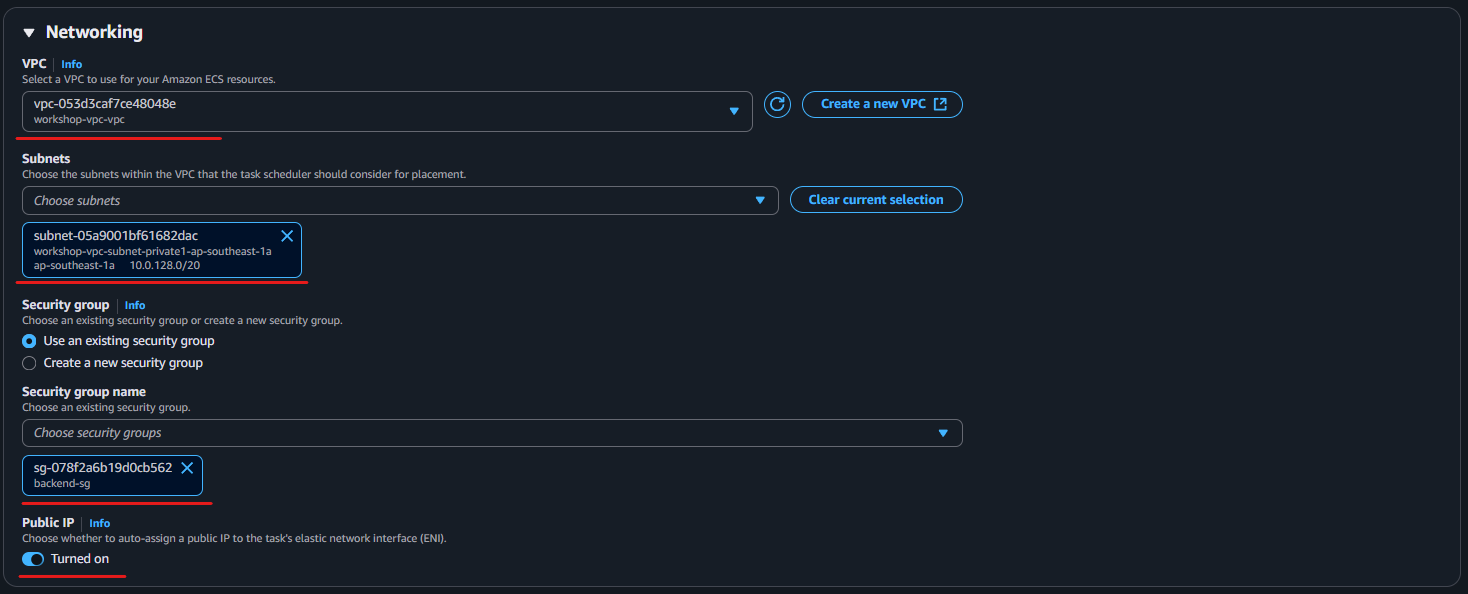

5.2. Create Backend Service

Repeat the above steps with:

• Task: backend-task
• Subnet: select private subnet (or public if needed for simple demo)
• SG: backend-sg
• No public IP needed if not calling directly from browser

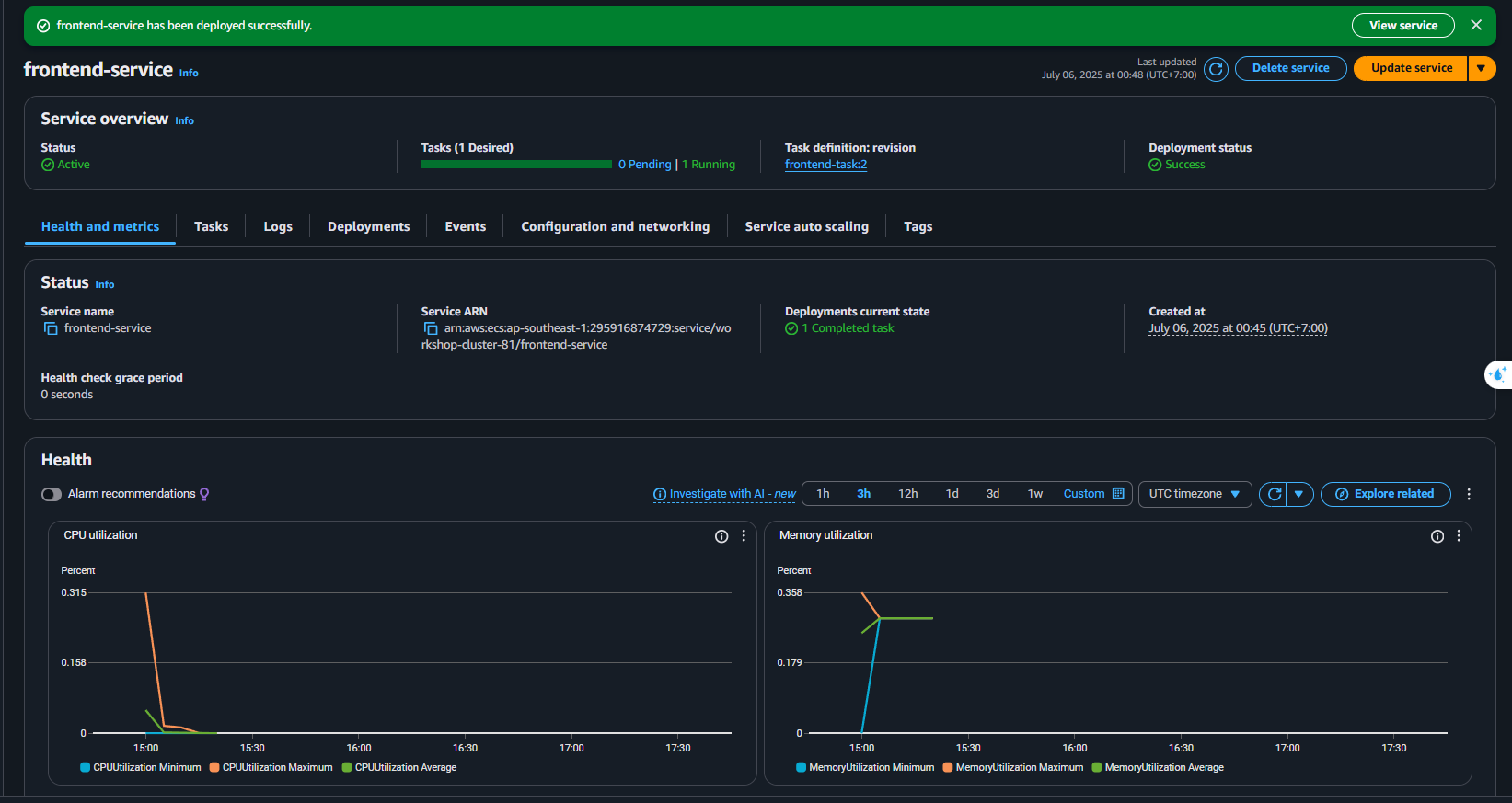

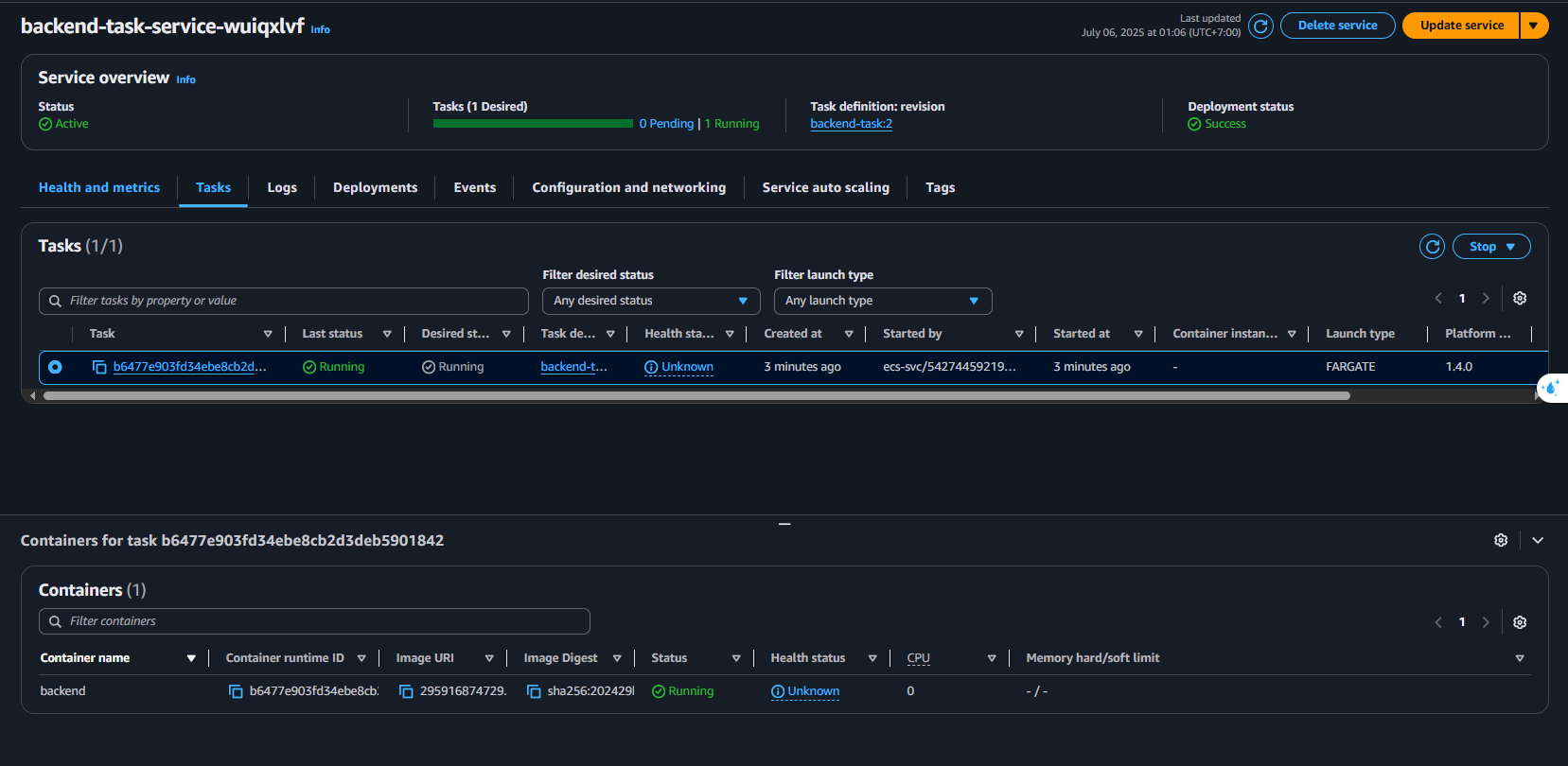

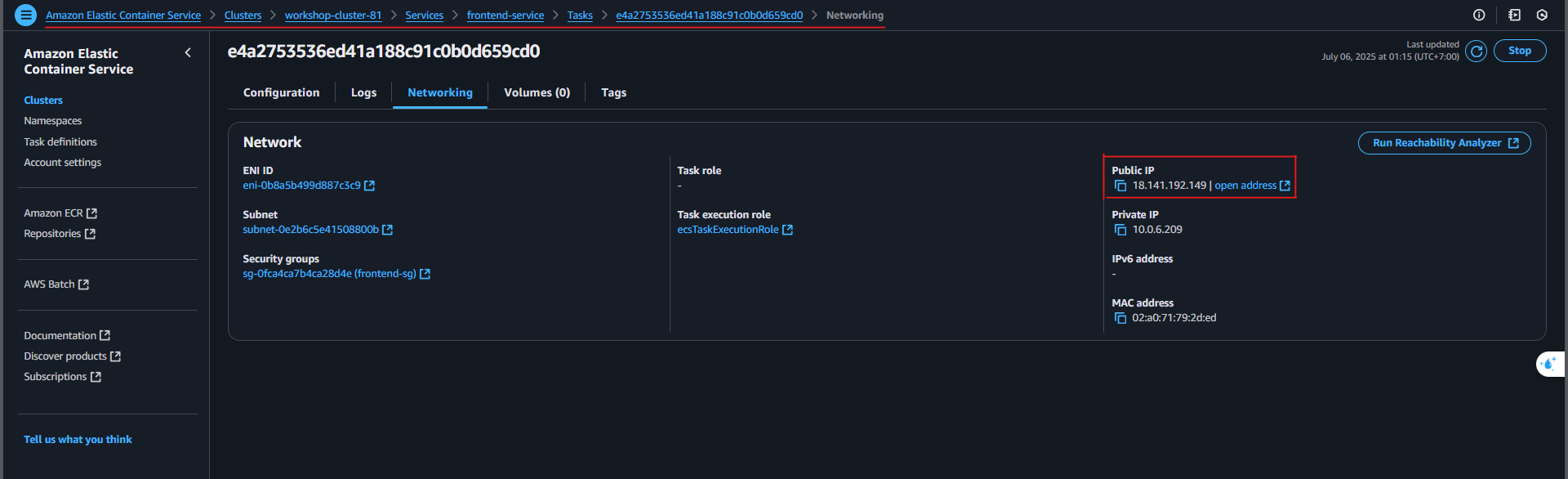

Check deployment

After creation:

• ECS will run 2 tasks in 2 services.
• Go to ECS > Clusters > Tasks to check RUNNING status

If not visible, check Security Group and ECR image push again.
