Chapter 1: Overview Introduction

Workshop Goals

In this workshop, you will learn how to deploy a multi-container application (frontend + backend) to AWS ECS Fargate. Main objectives:

  • Understand the basic CI/CD process.
  • Dockerize frontend and backend applications.
  • Use AWS services like ECR, ECS Fargate, and CloudWatch.

Key Steps

  1. Learn about CI/CD and containerization.
  2. Dockerize frontend and backend applications.
  3. Push container images to Amazon ECR.
  4. Deploy containers to ECS Fargate.
  5. Automate the process with GitHub Actions.

Core DevOps Knowledge

CI/CD

CI/CD (Continuous Integration/Continuous Deployment) is the process of automating source code integration and deployment. It helps minimize errors and accelerate software development.

  • Continuous Integration: Regularly integrate source code to detect errors early.
  • Continuous Deployment: Automatically deploy source code after successful testing.
  • Example: Every time you push to the main branch, GitHub Actions will automatically perform steps: build image, push to ECR, and deploy to ECS Fargate.

Containerization

Containerization is the technique of packaging applications and their dependencies into a container. Docker is the most popular tool to accomplish this.

  • Benefits: Easy deployment, consistency across environments.
  • Tools: Docker, Kubernetes.

ECS Fargate

ECS Fargate is an AWS service that helps run containers without managing servers.

  • Benefits: No need to manage infrastructure.
  • Application: Run containerized applications.

Technologies Used

  • GitHub Actions: Automate CI/CD processes. This workshop uses GitHub Actions instead of AWS CodePipeline because it’s more accessible to beginners.
  • Docker: Package applications.
  • Amazon ECR: Store container images.
  • Amazon ECS Fargate: Run containers.
  • CloudWatch: Monitor logs and system status.

Overall Architecture

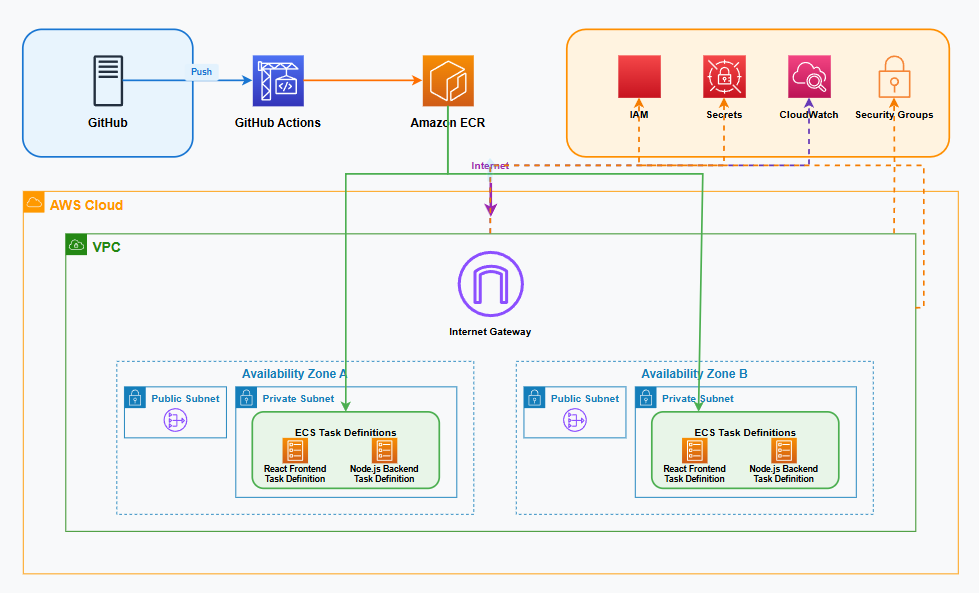

Below is the overall system architecture diagram:

  • Frontend: React app.
  • Backend: Node.js or Flask app.
  • ECR: Store container images.
  • ECS Fargate: Run containers.
  • Application Load Balancer: Distribute traffic.
  • CloudWatch: Log and monitor.

Overall Architecture

Tip: Make sure you have an AWS account and understand the basics of AWS services before starting.
